Innophys Muscle Suit Every

Innophys (Japan) · 2019

~$1,000 (¥149,600)The official Muscle Suit shop sells the Every for ¥149,600 including tax; it launched on 2019-11-01 at ¥136,000 before tax, about a third of the older Muscle Suit Edge, and the lighter Every-Light costs ~$880 (¥132,000) including tax.
AvailableButtons onlyBack exoskeleton3.8 kg25.5 kgf assistNo battery, hand-pumped air
Possibly ≤ 1 weekSold to individuals and companies from Innophys's official online shop in Japan and through distributors abroad; delivery time is not stated. Official shop ↗
Control: Not possible. It has no electronics at all.

Overview

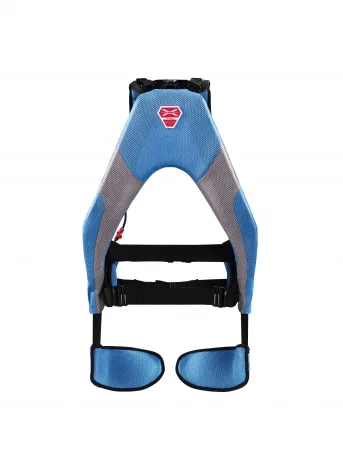

The Muscle Suit Every is a back-assist suit from Innophys, a Tokyo University of Science spinout, and it works very differently from motor-driven exoskeletons. It has no motor, battery or electronics; instead the wearer pumps air by hand into McKibben-type pneumatic artificial muscles, which then pull to help straighten the back during lifting, up to 25.5 kgf (100 Nm). That makes it light (3.8 kg), cheap for the category at about $1,000, rated IP56, and usable from -30 to 50 °C, with an endurance test of 400,000 cycles, but the assist is a fixed spring-like pull rather than a sensed, timed push. It is sold to care homes, farms, factories and logistics sites as well as to individuals for jobs like snow clearing, and the series has passed 35,000 units shipped. A lighter Every-Light (3.1 kg, 20 kgf) joined the range with monitor sales from Sep 30, 2026 (unconfirmed). Motor-driven rivals such as the ATOUN Model Y cost several times more.

Specifications

CategoryExoskeletons & exosuits · Industrial & work
Released2019
CountryJapan
AvailabilityAvailable
SalesOver 35,000 Muscle Suit series units shipped as of the end of April 2024, across all models. (estimate) Muscle Suit official site ↗
ProgrammabilityNo programmability
Built-in autonomyNone / scripted · Moves only when controlled, or plays preset motions
LLM supportNone · No voice assistant or LLM.
Best forAges 16+ (estimated)
Vision sensorsNo vision sensors
ActuatorsHydraulic / pneumatic
AudioNo audio
Compute typeNo on-board computer
ControlButtons only
Weight3.8 kg
AssistanceUp to 25.5 kgf (100 Nm) of back support from McKibben artificial muscles that contract when filled with air, helping the wearer straighten up from a bend; the 3.1 kg Every-Light gives up to 20 kgf (80 Nm).
JointsBack (lumbar)
Battery & runtimeNo electricity or battery. The wearer fills the artificial muscles with the supplied hand pump, and one fill lasts about a working day according to the maker.
OperationNo electronics. Assist strength is set by how much air is pumped in, and a valve releases it; soft-fit and tight-fit styles suit lifting or holding a bent posture.
SensorsNone
ComputeNone
SDKNone
