TRON 1

LimX Dynamics (China) · 2024

$15,000 – $25,000LimX's official store lists the Standard Edition at $15,000 and the EDU Edition at $25,000, excluding shipping, customs and taxes for overseas orders; RobotShop has listed the EDU Edition on sale at $15,000 including US tariffs.
AvailableWheel balance3 foot modesRL research testbedEDU SDK
Possibly ≤ 1 weekShipping: Days to weeks. Orderable from LimX's online store (ships from China, duties extra) or from US resellers such as RobotShop and US Robot Store, which list it in stock. LimX store ↗

Overview

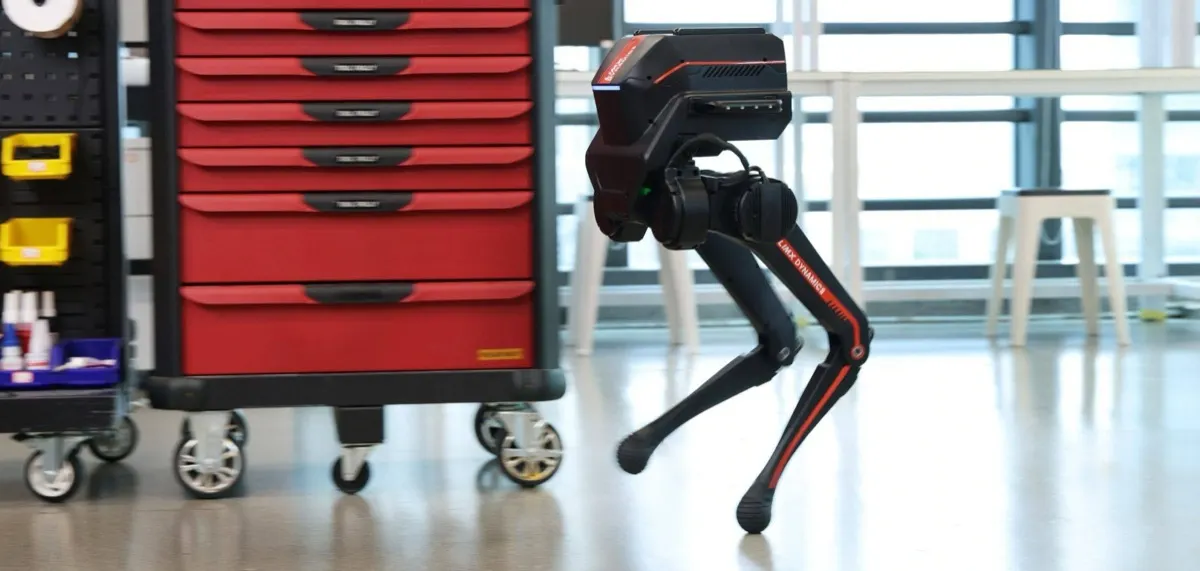

A legs-only research biped sold as an on-ramp to humanoid RL: one purchase includes point, sole and wheel feet that auto-detect when swapped. The EDU edition opens low-level control and ships sim-to-real examples, which makes it a popular lab platform in China. It is bigger and far pricier than hobby wheel-leggers, but it is a real dynamic biped.

Specifications

CategoryBipeds · Wheel-legged balancers
Released2024
AvailabilityAvailable
ProgrammabilityFull SDK
Best forProfessionals & labs
Vision sensorsDepth camera, Camera, Lidar
ActuatorsBrushless / direct-drive motors
AudioUnknown
Compute typex86 PC (Intel / AMD), NVIDIA Jetson
Balance typeWheel balance
Height≤ 845 mm (overall, ≤ 392 × 420 × 845 mm)
Weight≤ 20 kg
Compute12th Gen Intel i3, 16 GB RAM, 512 GB (optional NVIDIA NX AI kit)
SpeedUnder 1 m/s on point or sole feet; up to 3 m/s on wheels
DOF6 (point foot) to 8 (wheel foot)
SensorsIMU, joint encoders; optional LiDAR + depth-camera kit
BalanceQuick-swap feet turn it into a point-foot biped, a flat-sole walker or a wheel-legged balancer, each running LimX's learned controllers.
SDKOpen SDK (EDU edition), Python and C++, Isaac Sim / MuJoCo / Gazebo support, GitHub examples
