X-ble MEX

Hyundai Motor Group Robotics Lab (South Korea) · 2025

Not publishedNo price or sales channel has been published. The only units found so far were donated in pairs to Korean hospitals (Asan Medical Center and the National Rehabilitation Center in 2023, the Armed Forces Capital Hospital in 2024).
Announced onlyApp-adjustedHip & knee exoskeleton18 kg1.2 km/hMFDS Class III
Not releasedNot on sale. Hyundai has donated units to three Korean hospitals and has not announced a commercial channel or price.
Control: Clinicians adjust gait parameters from a therapist app over Bluetooth or Zigbee. No end-user computer access.

Overview

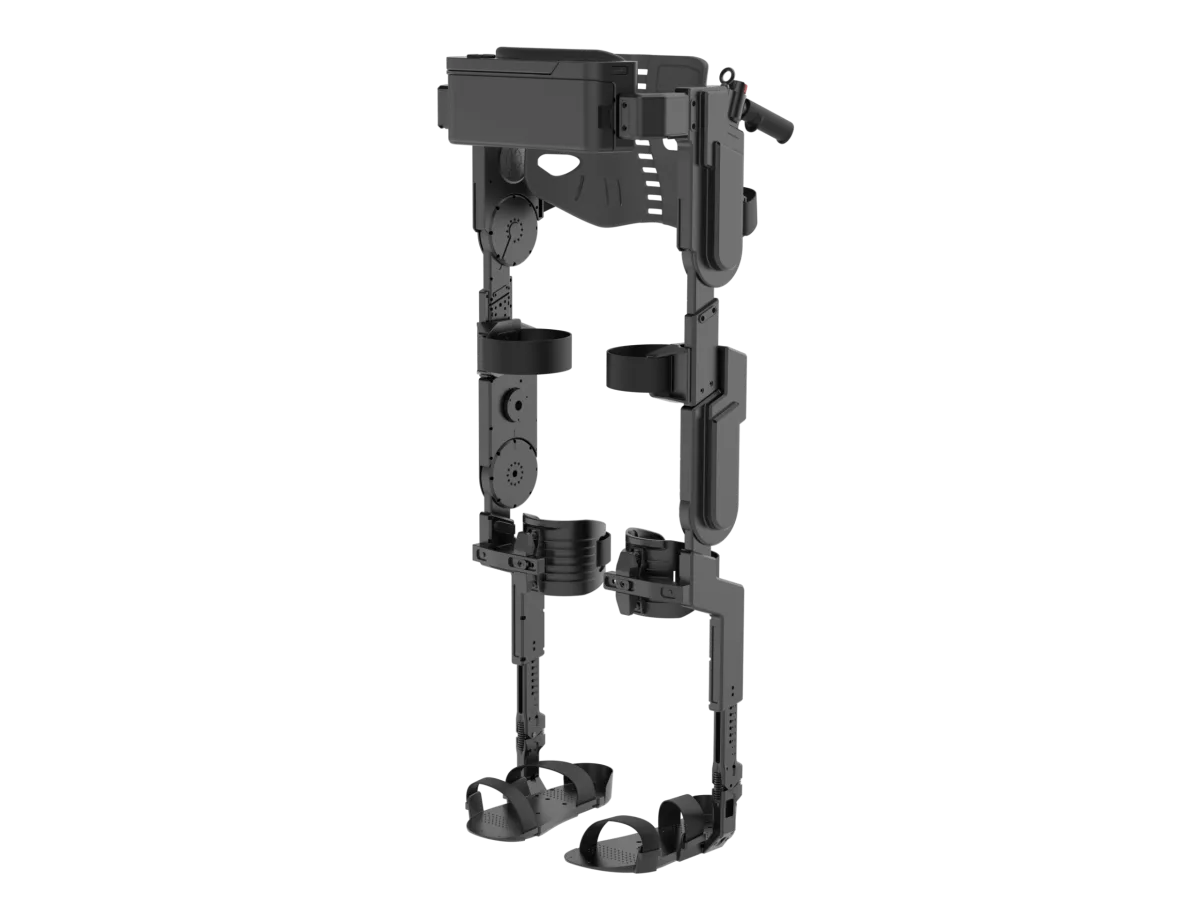

X-ble MEX is Hyundai Motor Group's medical exoskeleton for people with paraplegia or stroke-related walking impairment, the production version of the H-MEX prototype shown in 2017. It wraps the legs and pelvis in a slim 6061 aluminium frame that can be put on from a wheelchair, and four motors (down from eight in early prototypes) drive the hips and knees at up to 1.2 km/h, with stairs, turning, sitting and standing among its seven modes. The wearer balances on crutches, which carry the step buttons, while a therapist app adjusts stride and timing. It received Korean MFDS Class III medical device approval in November 2025 (an earlier Class 2 certification preceded it), and an FDA submission is pending (unconfirmed). Users must be 160–190 cm tall and under 100 kg, and the 3,900 mAh battery gives about 90 minutes of walking. As of October 2026 no price or sales channel has been published, and the only units found are the six donated to Korean hospitals, so it is listed as announced rather than for sale. It is heavier than the ABLE Exoskeleton and the ReWalk 7 but comparable to the EksoNR.

Specifications

CategoryExoskeletons & exosuits · Medical & rehabilitation
Released2025
CountrySouth Korea
AvailabilityAnnounced only
SalesSix units donated to three Korean hospitals (2023–2024). Hyundai brand journal ↗
ProgrammabilityNo SDK, app / visual programming only
Built-in autonomyReactive · Responds to its surroundings without a map, such as avoiding obstacles or following a person
LLM supportNone · No voice assistant or LLM.
Best forAges 18+ (estimated)
Vision sensorsNo vision sensors
ActuatorsBrushless / direct-drive motors
AudioNo audio
Compute typeProprietary / undisclosed
ControlApp-adjusted
Weight18 kg (including the 1.5 kg battery)
AssistanceFour motors at the hips and knees move the legs of a person with paraplegia through standing, walking, turning, sitting and stair climbing (15–25 cm steps). Stride length is adjustable from 15 to 36 cm in 3 cm steps and step time from 1.0 to 2.5 s.
JointsHips & knees
Battery & runtime1.5 kg Li-ion pack, 43.2 V, 3,900 mAh, about 1 h 30 min of continuous walking (85 kg user at 0.75 km/h), 2 h charge.
OperationButtons on a wireless smart controller mounted on the crutches (one press is one step), plus a therapist app for trajectory and mode settings. Seven modes including sit, stand, stairs and turns.
SpeedUp to 1.2 km/h
SensorsIMU posture and centre-of-gravity monitoring, joint encoders, electronic joint brakes that hold on power loss, emergency stop
ComputeNot published
SDKNone
